Toroidal Lens
Toroidal Lens

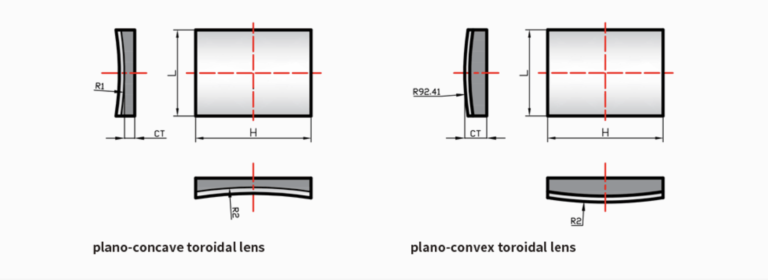

Toroidal lenses, also known as tire mirror or tire lenses, can be considered as an arc rotated around another arc along an axis. They are often used to replace optical lens groups, simplifying instrument structure and improving imaging quality. Toroidal mirrors do not cause image distortion like flat mirrors or single spherical mirrors, reducing the number of optical lenses required.
Prarmeter
| Materials | Radius Range (mm) | Diameter Range (mm) | Dimension Tolerance (mm) | Thickness Tolerance (mm) | Surface Quality (Scratch & Dig) | Surface Accuracy | Centration | Annual Capacity |
| Colorless optical glass, laser crystal, fused quartz, radiation-resistant glass, ultraviolet and infrared materials, metal materials, such as SiO₂, CaF₂, BaF₂, etc. | R30～R∞ | Φ10～Φ300 (maximum non-circular processing size: 300mm) | ±0.01～±0.2 | ±0.01～±0.2 | 10/5～80/50 | λ/4～λ/Φ100 mm | 30″～5′ (or Δt ≤0.01) | Over 150,000 pcs/year |
