M9 P0.5 Collimator Lens
M9 P0.5 Collimator Lens
A collimating lens is an instrument that converts light from each point in the aperture column into a parallel column of collimating light.
Lens type depends on aberration requirements, For low requirements, simple lenses, such as flat convex or double convex lenses, may be used and a larger relative aperture is allowed. High requirements, Achromatic lens will be use, the relative aperture is also appropriately reduced.

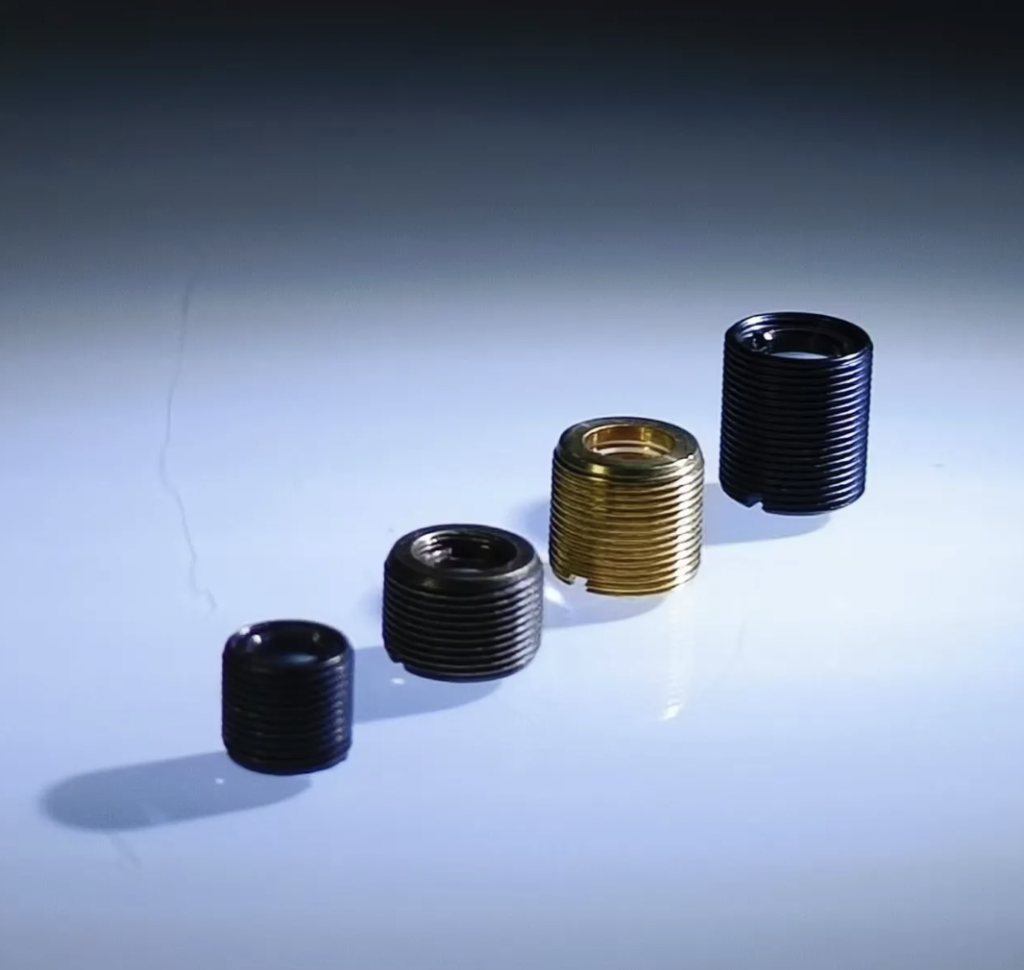

Collimator lens is one of the mainly products in Sunday. We have standard ones and also accept customer-made.
Description
| Shell Material | Aluminum or Copper |
| Lenses | aspheric lens, two lenses, three lenses (Glass), single apron, two aprons |
| Size | M6X0.5, M7X0.5, M9X0.5, M8X0.5, M12.7X0.5 |
| Wavelength | 405nm-450nm, 630-670nm |
| Focal length | 2mm, 4.05mm, 6mm, 7mm, 8mm, 10mm, 15mm, 20mm |
| Length | 7mm, 8mm, 10mm, 12mm |

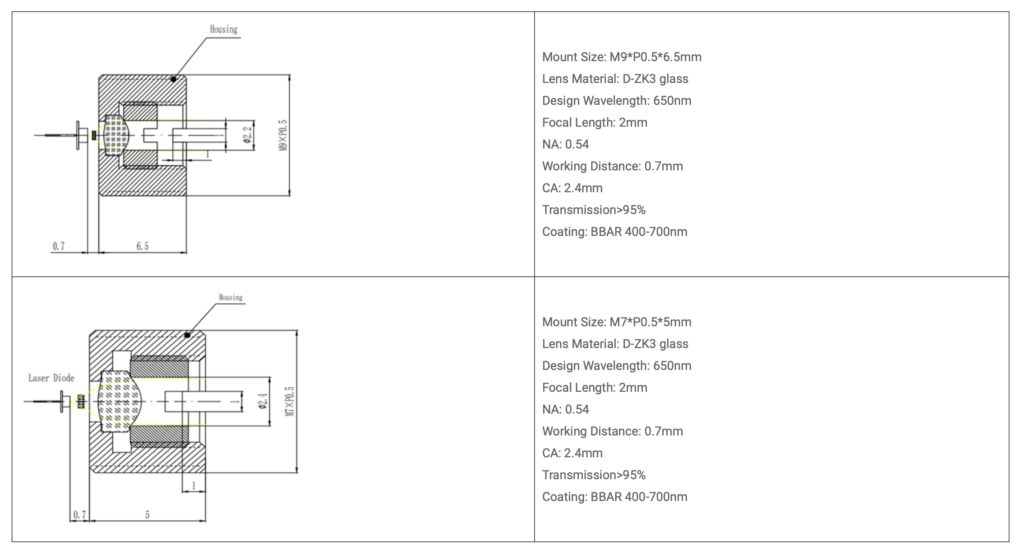

Collimator Lens EFL 2mm
Collimator Lens EFL2mm, made by optical glass aspheric lens. The length can be 5mm, 6.5mm, 8mm or customized. the Diameter can be customized M6 M7 M8 M9.

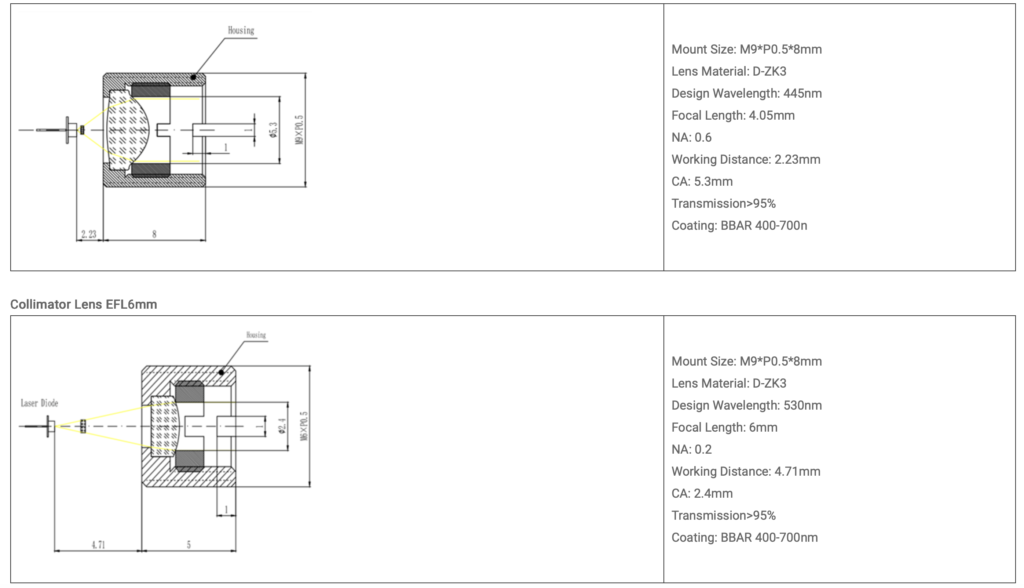

G2 lens Collimator Lens EFL4.02mm
Collimator Lens EFL4.05mm, made by optical glass aspheric lens.
The length can be 6.5mm, 8mm, 10mm, 14mm or customized. the Diameter can be customized. M9*0.5 M10*0.5
When you need other wavelength, please contact us freely.
